Description
The XY stage moves the work side to side and front to back. This one adds a third micrometer that raises and lowers it.

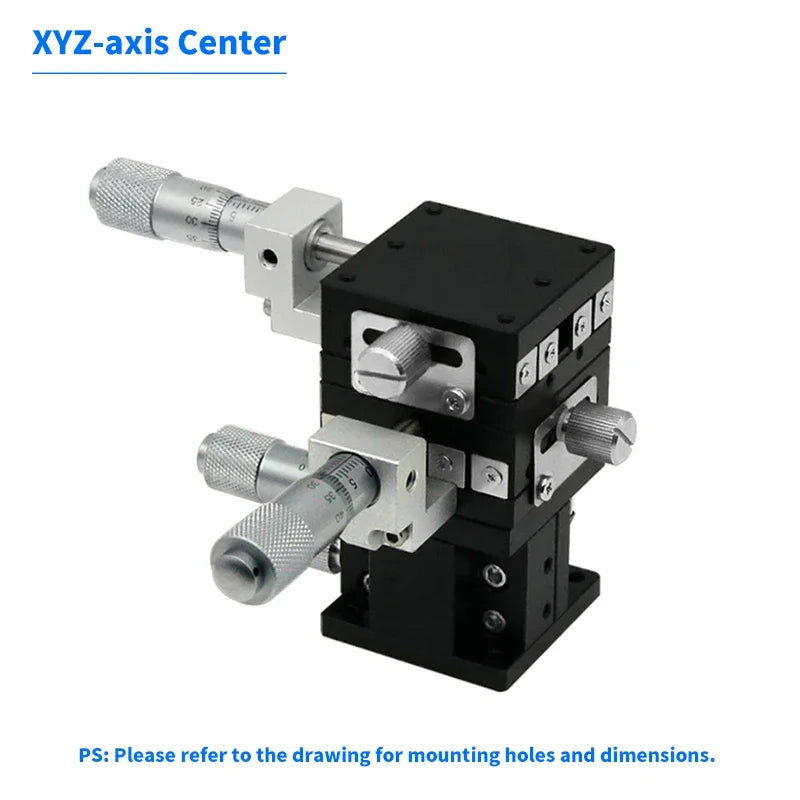

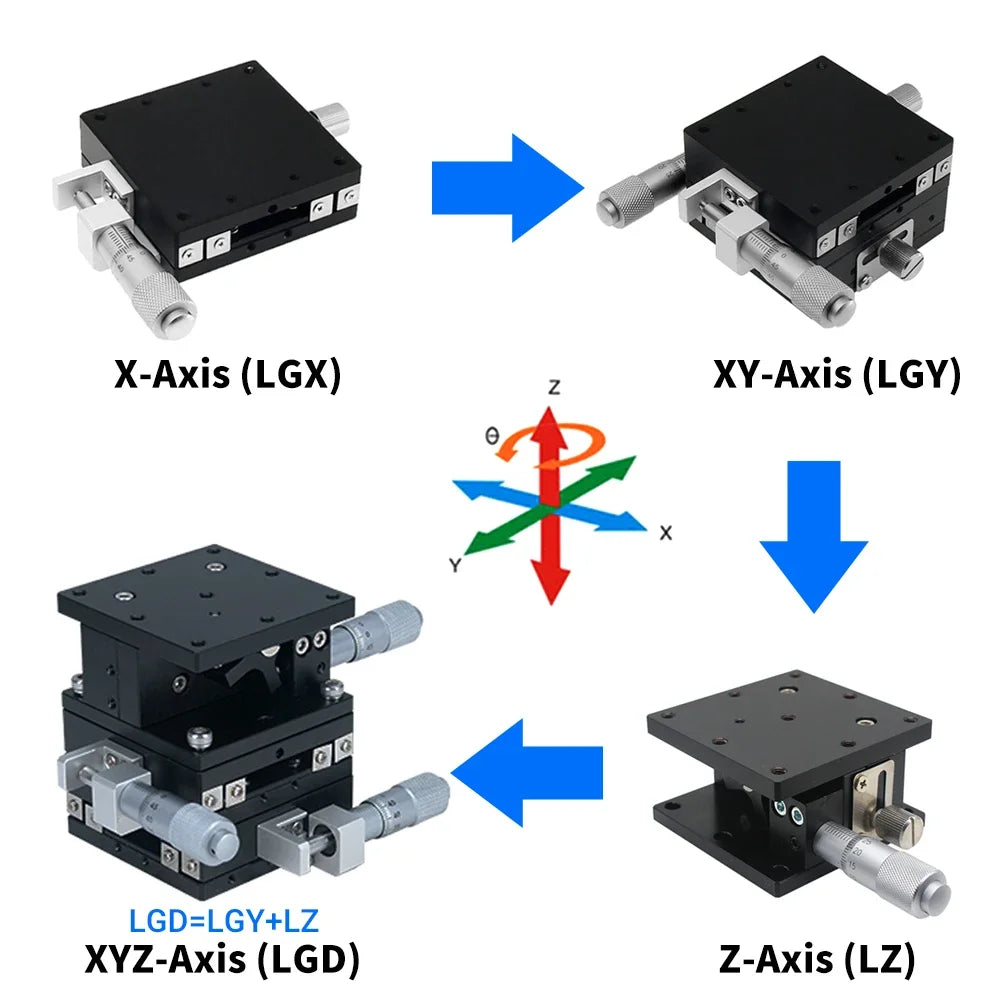

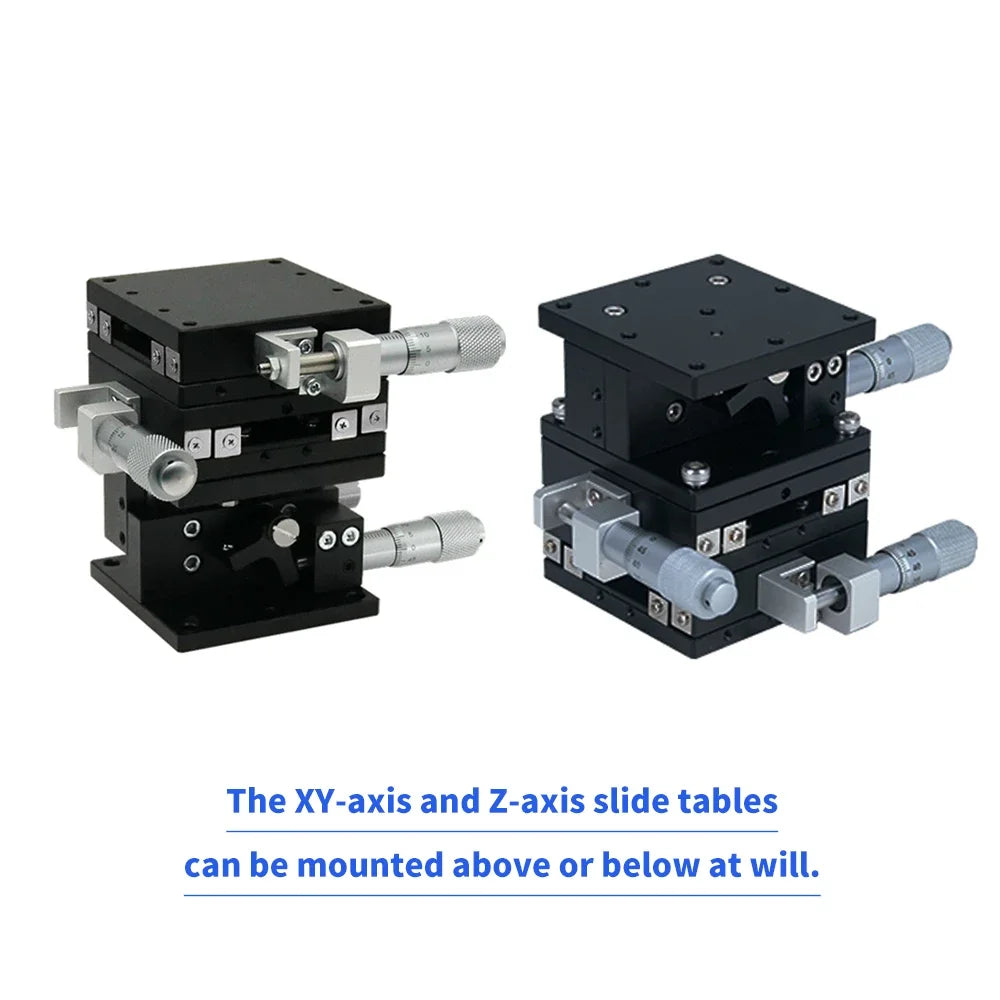

Three stages stacked into one block: two sliding stages for X and Y and a lifting stage for Z, each driven by its own micrometer head. Each division on a thimble is a hundredth of a millimeter. On a small drill press the Z axis lets you bring a part up to the bit by a measured amount instead of moving the head on the column.
- Two sizes. Top plate 40 x 40 mm or 60 x 60 mm.
- Travel about 6.5 mm each way on X and Y. It is for fine positioning, not for moving a part across the table.

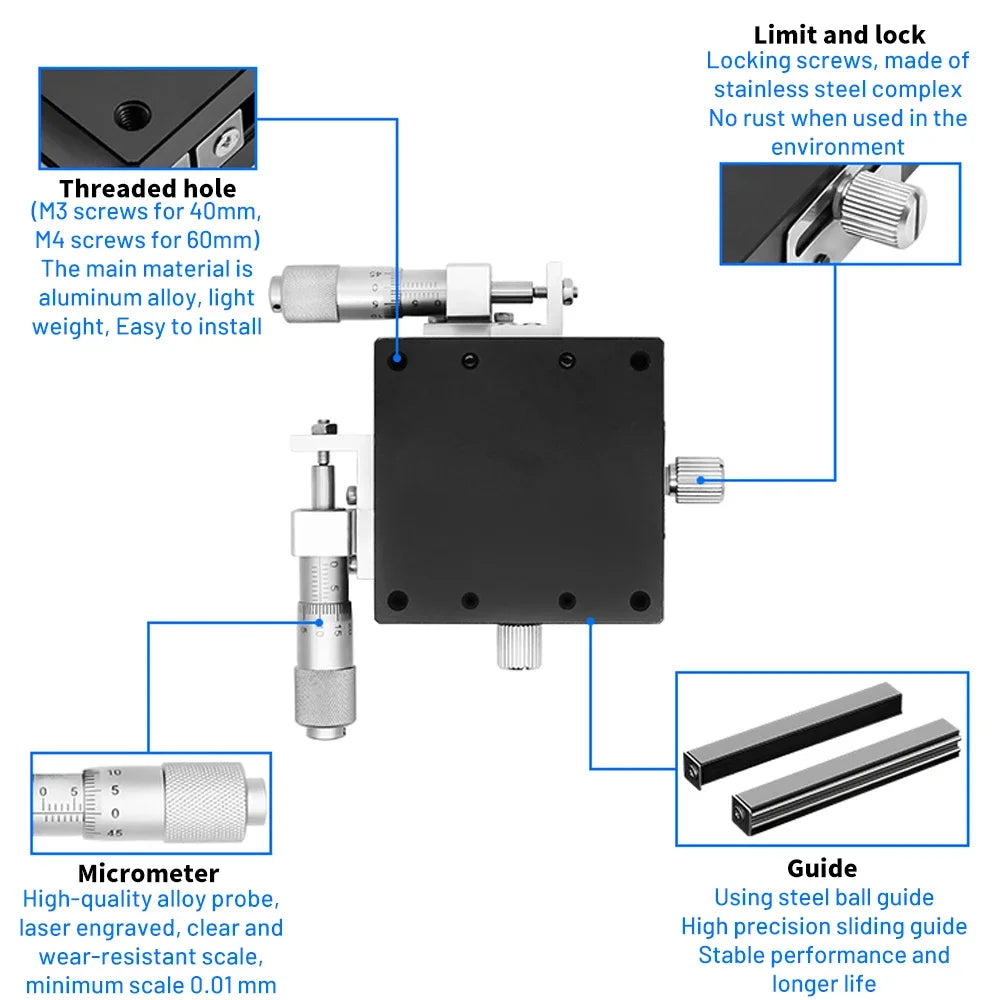

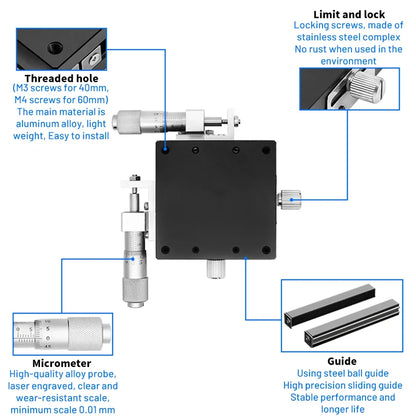

- Threaded holes in the top plate: M3 on the 40 mm stage, M4 on the 60 mm. That is where a small vise or clamp goes.
- Aluminum body, black finish, steel ball guides, a lock screw on each axis, micrometers on the center of each side.
Before you order
Three stacked stages are tall. Measure the gap between the chuck and the base on your own machine and check it against the height in the drawing for the size you choose. On a small column press the head can usually be raised to make room.
The stage sits on the drill press base; fix it with a clamp or double-sided tape.
If you only need X and Y, the two-axis version is lower and costs less. Need to turn the part as well? The XYZR stage adds a 360° rotary table on top.
