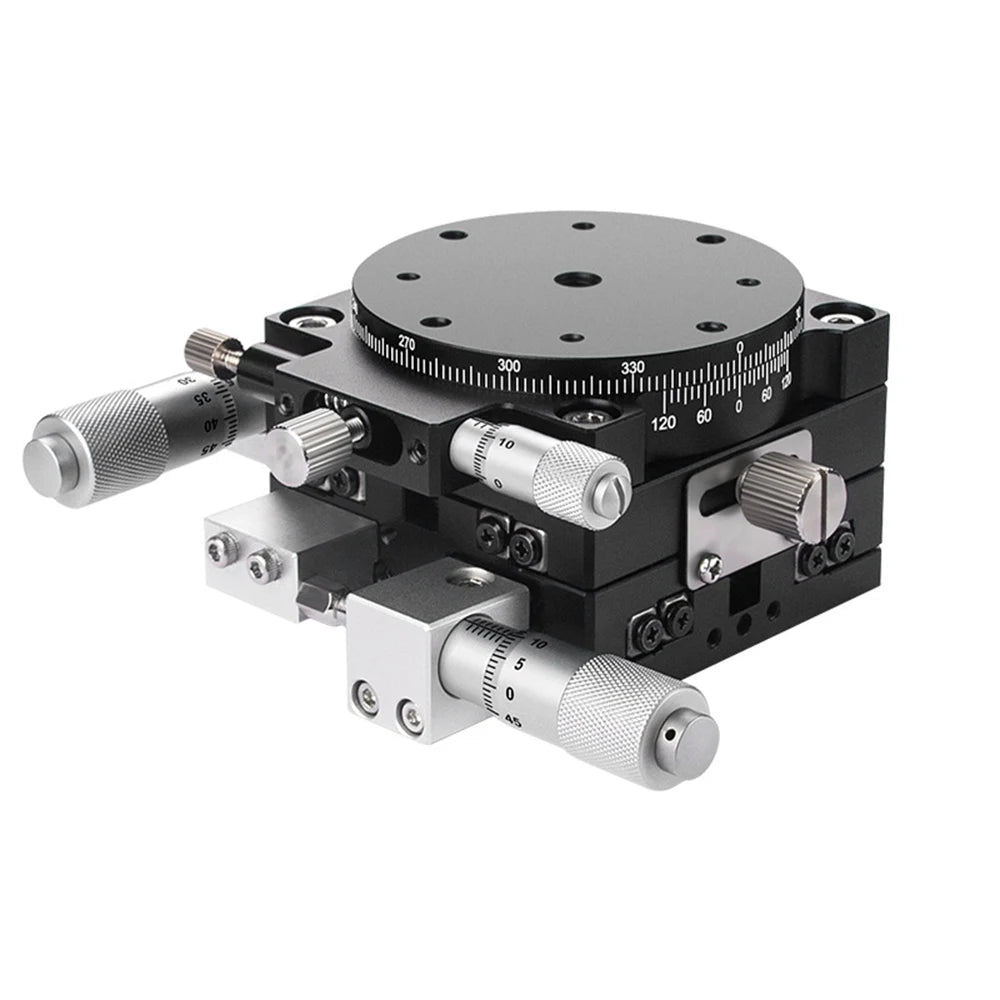

  • XYR micrometer stage with 60 mm rotary table on top of X and Y slides
1 1

XYR micrometer stage, 60 mm, with 360 degree rotary table

$219.00 USD
$219.00 USD
Sale Sold out
Shipping calculated at checkout.
Two to three weeks, tracked. Shipping is free.
30-day returns
  • Free tracked shipping
  • Secure payment
  • 30-day returns

Description

Side to side, front to back, and round. Three moves, one block, and the part never leaves the clamp.

An XY stage lines a hole up with the bit. A rotary table turns the work to an angle. This stage does both: two micrometer-driven slides for X and Y, with a 60 mm rotary table on top that turns a full 360 degrees and locks where you set it. Put a small vise on the round table and you can drill a bolt circle, index holes at 15 degrees, or nudge a mark into line under the bit by a hundredth of a millimetre, all without unclamping.

The numbers

  • 60 x 60 mm base, 60 mm round rotary table on top, 51 mm tall overall, per the maker's drawing.
  • X and Y travel: 6.5 mm each way, read on micrometer heads in 0.01 mm steps.
  • Rotation: 360 degrees, with a graduated scale around the table and a lock screw.
  • Tapped holes in the rotary table: one M5 in the centre, plus rings of M4 and M3, each 6 mm deep. That is where a small vise, a clamp plate or a fixture bolts on.
  • Load: 3 kgf. Aluminium body, black finish, steel ball guides.

Where it fits in

This is the fine-positioning layer of a small bench setup: machine on the base, this stage on the table, the vise on top. It is built for positioning, so it pairs with drilling, marking and inspection, the jobs where the part has to be exactly where you meant it.
