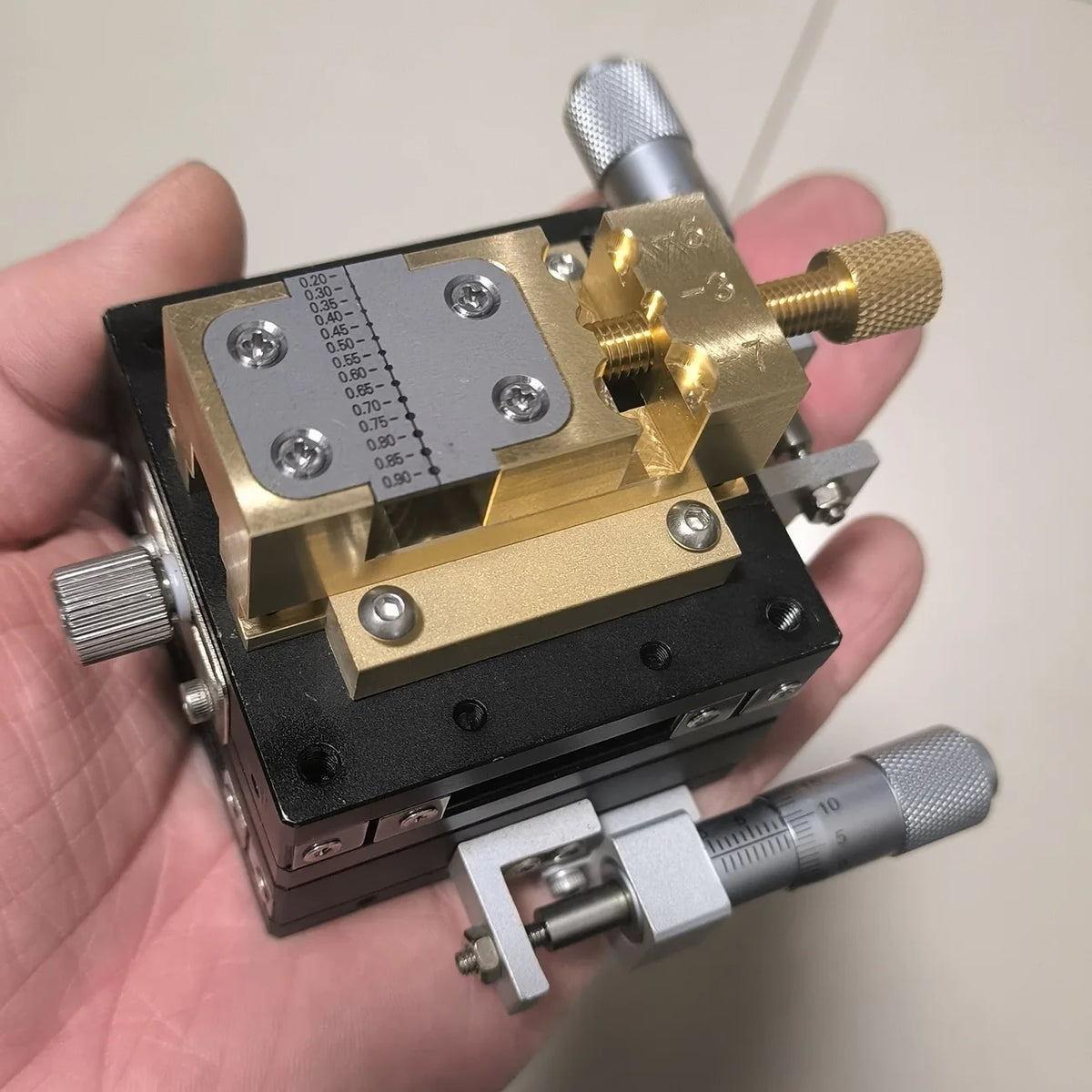

  • Brass micro vise on an XY stage

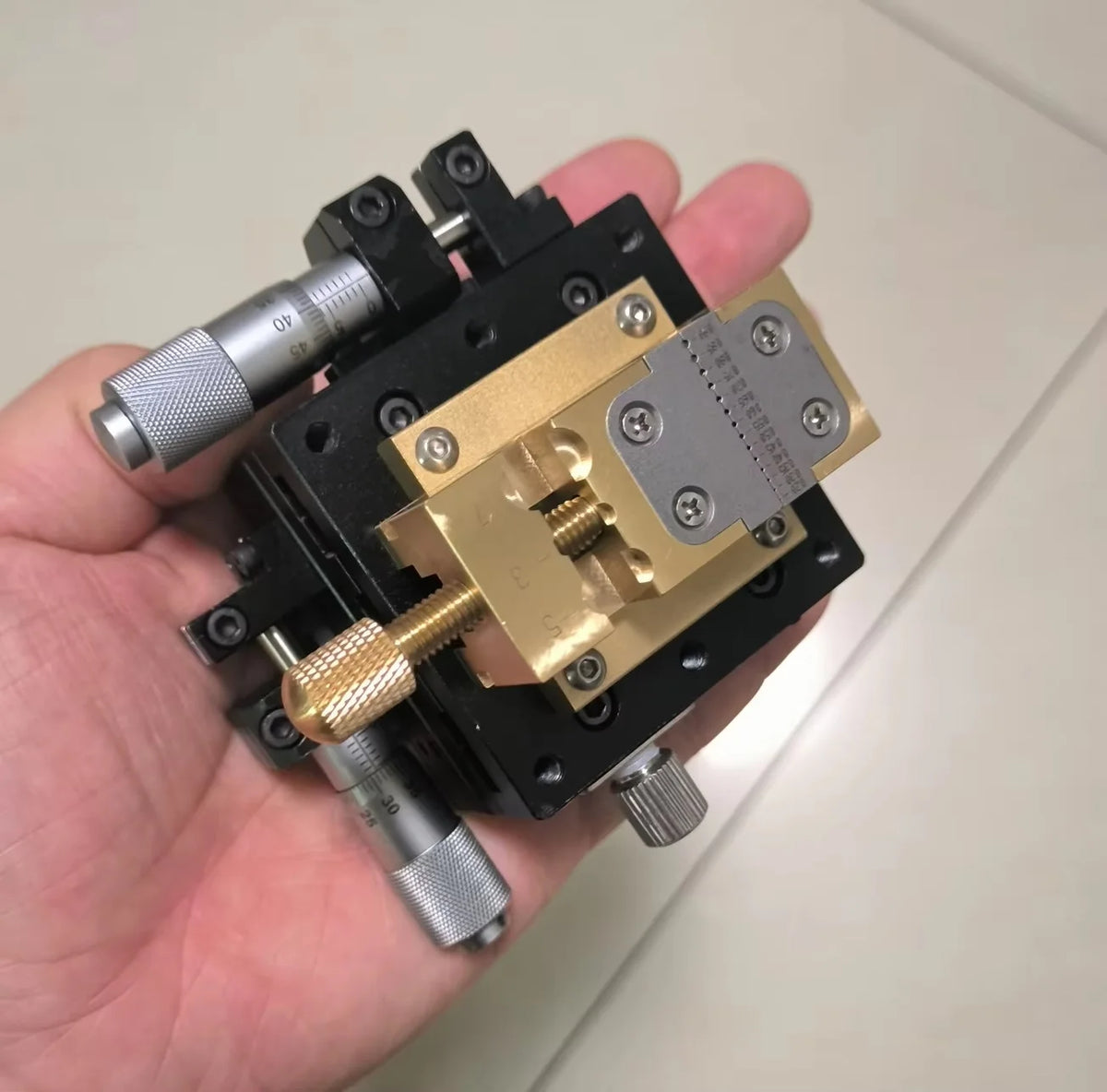

  • XY stage lead screws under the brass vise

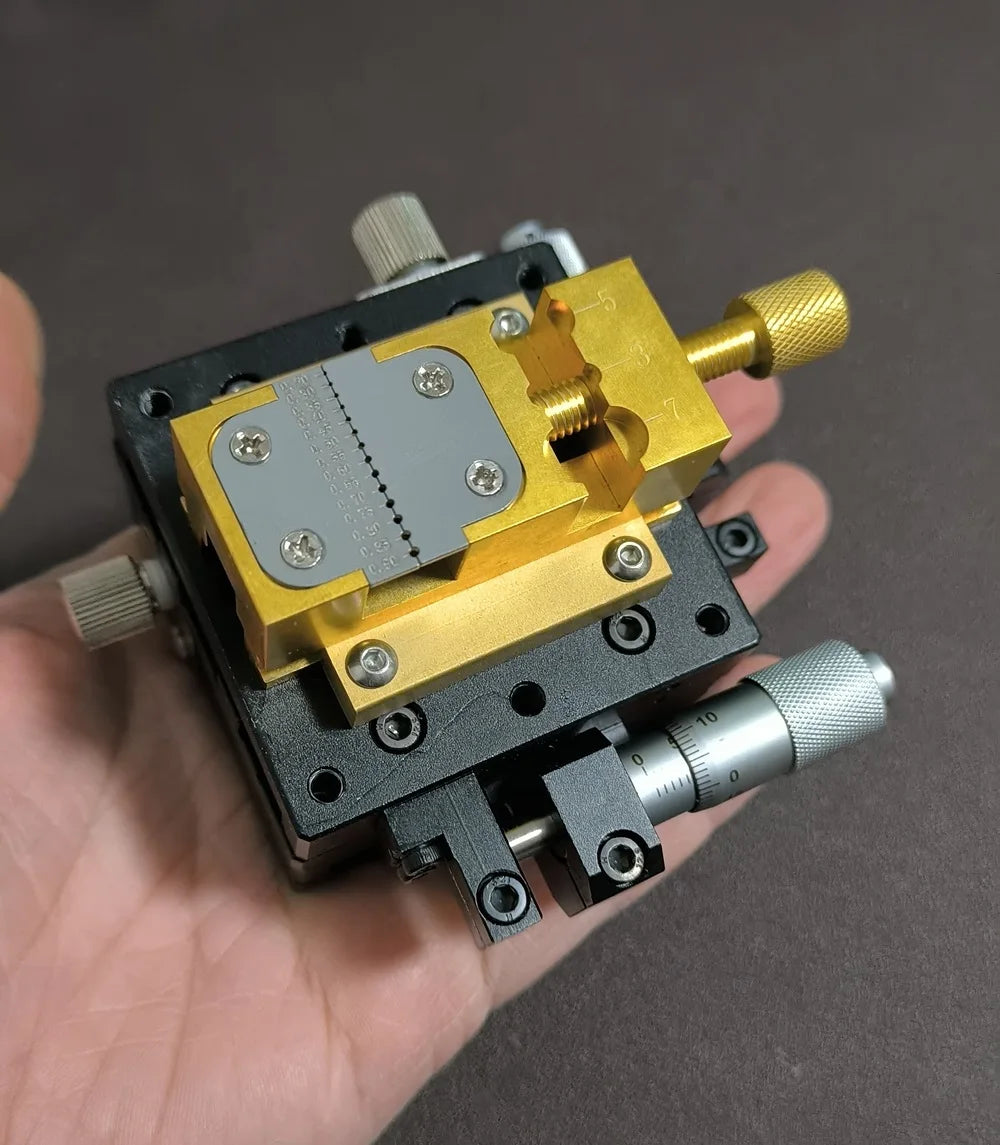

  • Brass jaws holding a watch plate

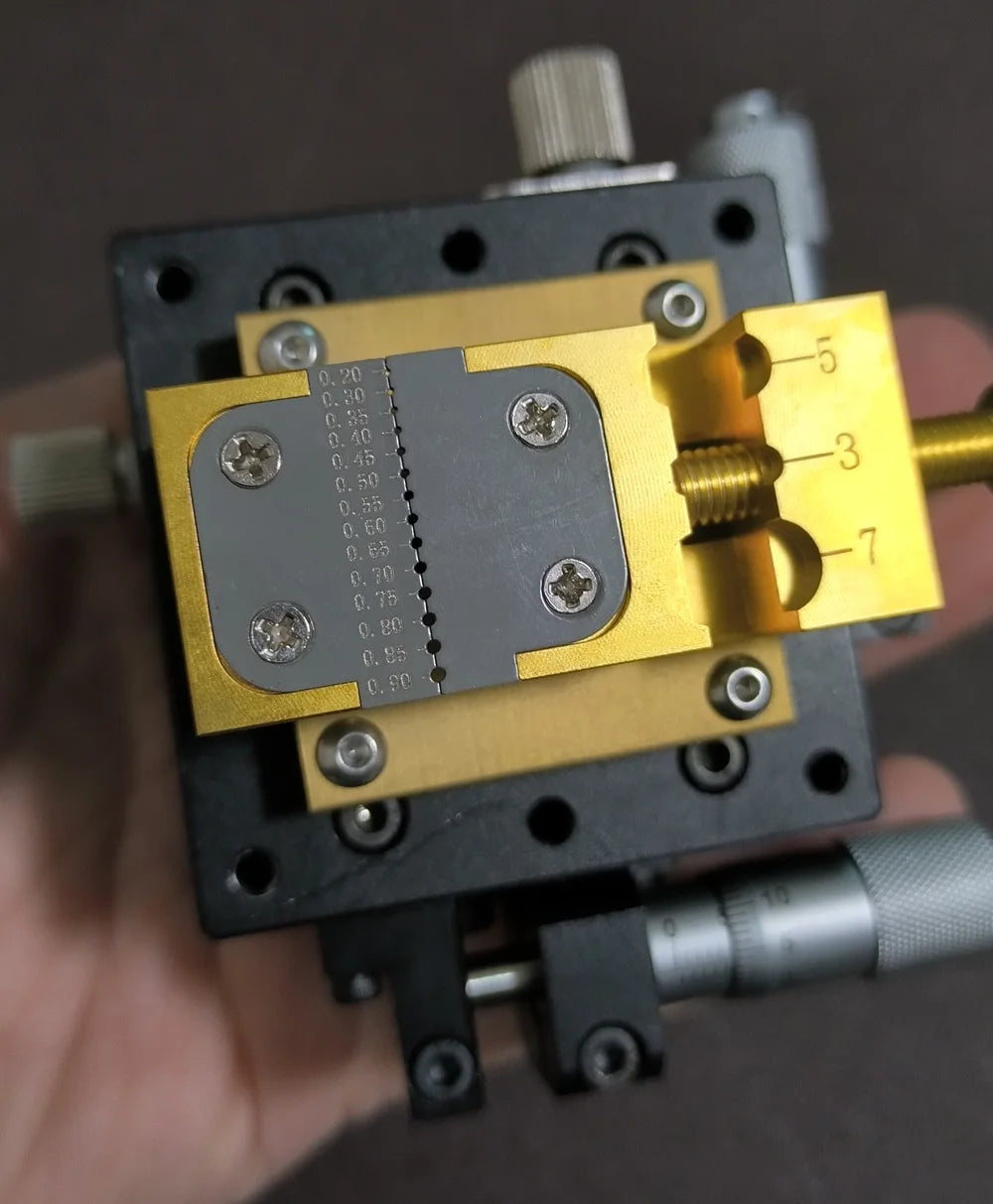

  • Brass vise with XY stage, side view
1 4

Brass Micro Vise with XY Stage

$169.00
$169.00
Sale Sold out
Shipping calculated at checkout.
30-day returns
  • Free US shipping
  • Secure payment
  • 30-day returns

Description

The same brass vise, sitting on a two-axis stage with fine-adjustment screws. You clamp the part once and then move it under the bit instead of unclamping and guessing.

This is the piece that turns a drill press into something you can put a row of evenly spaced holes into. Set the first hole, wind the screw a known amount, drill the second.

  • Brass vise on a machined XY platform. Two lead screws, one per axis.
  • Bolts to the drill press base - centre hole and six M3 threads.
  • Built for watch and instrument work: plates, dials, small brass, anything where the second hole has to relate to the first.

Say the price out loud

This is the most expensive thing we sell that is not the machine itself, and it is more than the machine's own accessories put together. Shops that carry it ask around $175. We are asking less, and if you only ever drill one hole at a time you do not need it - buy the plain brass vise and keep the difference.

What it will not do

It does not make the machine into a mill. The stage moves the work, but the drill chuck still grips for downward force only. Side load pulls a bit out of a drill chuck. Milling needs a collet spindle, and we do not have one yet.

Delivery on this item

2 to 3 weeks.

Shipping is free on every US order. Orders leave within 1–2 business days and delivery typically takes 5–15 business days. You get a tracking number by email as soon as your order ships.

Returns can be requested within 30 days of delivery. The item must be unused, in its original condition and in its original packaging. Email us at support@arvonelle.com before sending anything back. See our Shipping Policy and Refund Policy for the full details.
