PCB Micro Drill Bit Set, 10 Pieces, 1/8 in Shank
$21.99 USD
$21.99 USD
Sale
Sold out
Shipping calculated at checkout.
★★★★★ 5.0 from our Etsy buyers
30-day returns
A part breaks in the first year? We send a new one free
One to two weeks, tracked. Shipping is free.
30-day returns
Couldn't load pickup availability
Other drill bits
- Free tracked shipping
- Secure payment
- 30-day returns
Description

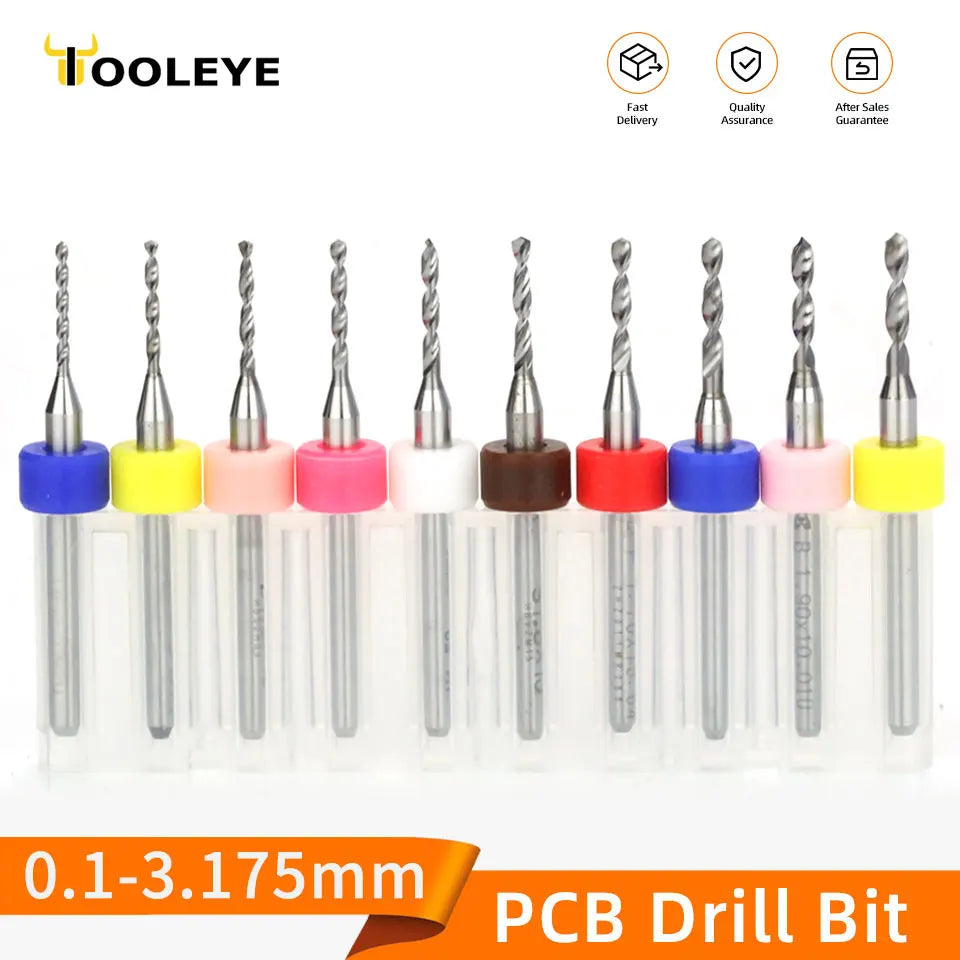

Our other bit packs give you ten of one size, which is what you want once you know the size. This is for before you know it: ten different sizes stepping through a range, so the hole you need is already in the box.
Tungsten carbide, 3.175 mm shank on every bit regardless of the cutting diameter.
Starter kit: 30 bits, 0.1 to 2.5 mm, $39.99
Not sure which range you need? Take the starter kit: three sets in one order - 0.1 to 1.0, 1.1 to 2.0 and 1.6 to 2.5 mm, thirty bits in all. Bought separately those three sets come to $55.97. It covers board work, through-hole parts and small brass in one go.
The uniform shank is the point

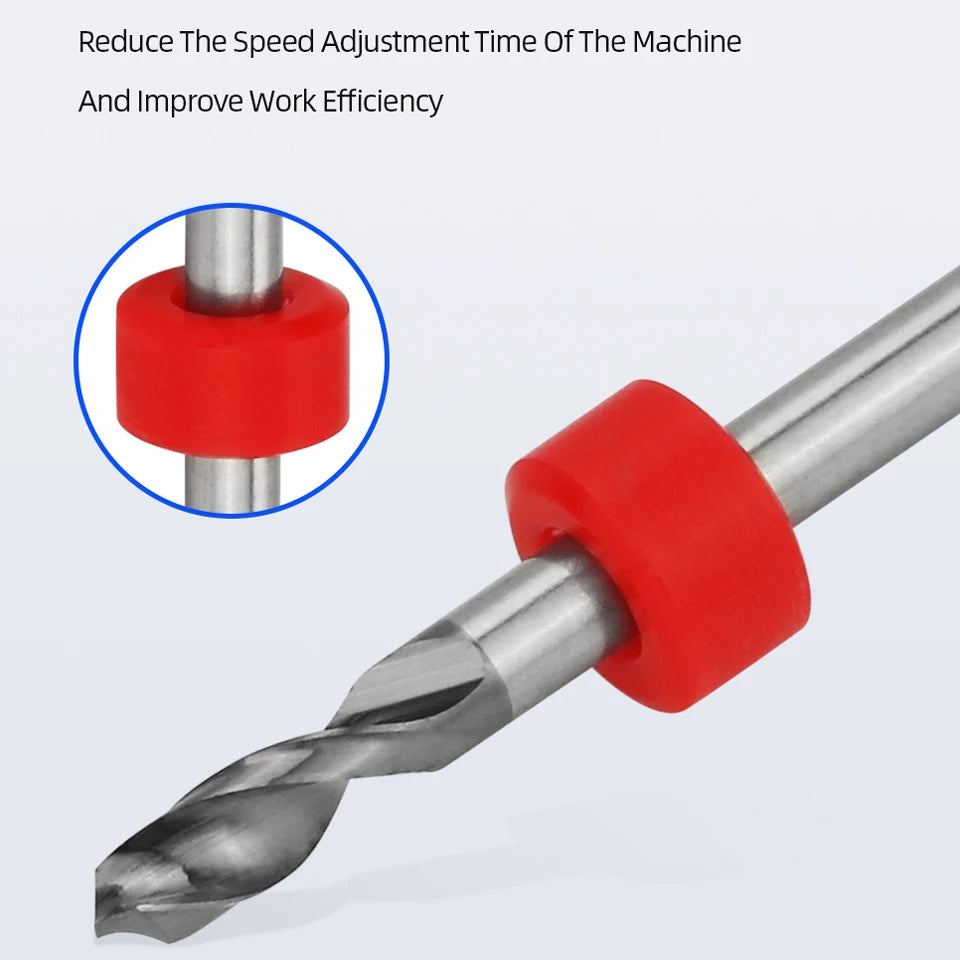

A 0.3 mm drill with a 0.3 mm shank cannot be held by an ordinary chuck at all, and it snaps the moment it is not running true. These are ground down from a 3.175 mm body, so every bit in the set clamps the same way, runs concentric, and has a solid shoulder behind the cutting end. Our chuck takes 0.3 to 4 mm, so the whole range fits without changing anything.
Choosing a range

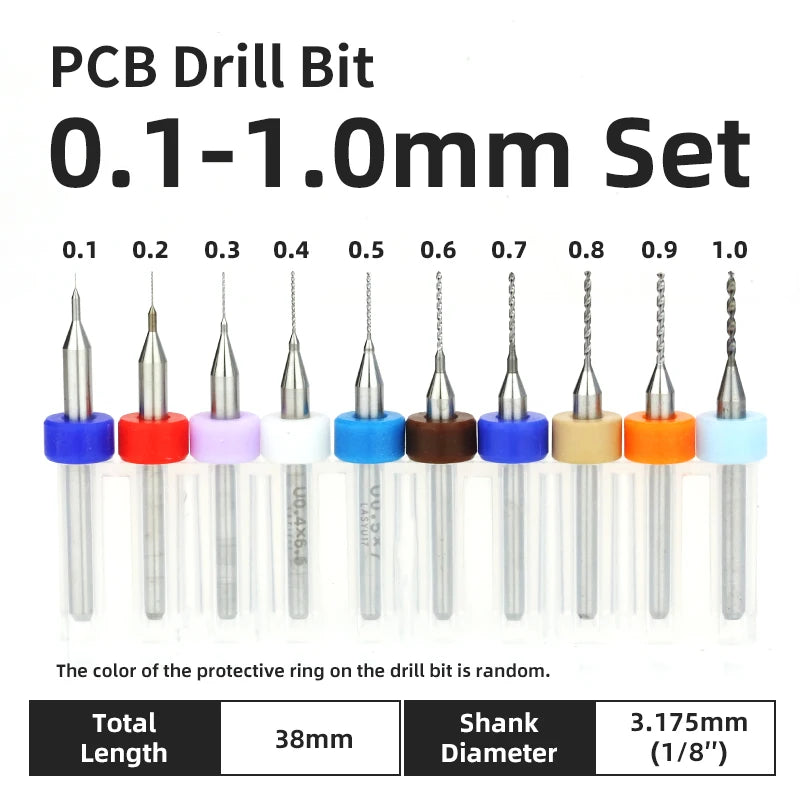

0.1 to 1.0 is board work - vias, fine component legs, watch and model parts. 0.6 to 1.5 covers most through-hole components. 1.1 to 2.0 and 2.1 to 3.0 move into general small-part drilling where you want a step between sizes rather than one size repeated.
How to run carbide
Carbide holds an edge far longer than HSS. Clamp the work and drill straight down - carbide dislikes side load. Run them fast and feed them lightly: a slow feed, not a slow spindle, is what keeps the tip sharp. The finest sizes, below about 0.5 mm, are consumables.
Delivery
Free and tracked, to the United States, Australia, New Zealand and Canada alike. One to two weeks.
30-day returns from the day it arrives. Return postage is yours, the price of the item comes back in full.
