If your order arrives damaged or defective, email support@arvonelle.com with your order number and a photo. We replace it or refund it — you don't have to argue for it.
$129.00$149.00
Free US shipping
Mini Drill Press for Jewelry Making, Watchmaking and PCB, Benchtop Drill with Variable Speed and 0.3-4 mm Chuck
$129.00 USD
$129.00 USD
$149.00 USD
Sale
Sold out
Shipping calculated at checkout.
★★★★★ 5.0 from our Etsy buyers
30-day returns
A part breaks in the first year? We send a new one free
BLACK FRIDAY GIFT: free 10-piece cobalt drill bit set (0.5–3 mm) with this press, added to your cart automatically. Plus 10 PCB micro drill bits free, and 15% off everything with code BF15
Machine: 3 to 7 business days from a US warehouse, tracked. Watchmaker and PCB Kit extras ship separately in 1 to 2 weeks. Shipping is free.
About the plug
The power supply is rated 100-240 V, 50/60 Hz, so US mains is well inside its range. No converter, no transformer.
If the plug that arrives doesn't fit your outlet, tell us and we post you the right adapter free, or refund you in full.
30-day returns
Couldn't load pickup availability
5.0 · 1 review
“The machine is fantastic. Used it today on my wooden ship model and it was absolutely perfect, so thank you very very much.”
— Todd D., verified buyer on Etsy
Choose your model
- Free tracked shipping
- Secure payment
- 30-day returns
Description
Free with any kit of this press: a pack of 10 PCB micro drill bits (US$12.99 in our shop). The 3.175 mm shank fits this chuck. They ship separately with their own tracking number, in 1 to 2 weeks.
Pick the right Mikrabench for your bench
- This press: 0.3–4 mm chuck, from $129. Takes ordinary twist bits. The all-rounder.
- Micrometer Depth Stop Kit, $59.99: bolts onto this press (left in the photo) so every hole stops at the same depth.
- Collet Drill Press, $179: 3.175 mm collet for carbide PCB bits.
- Micrometer Drill Press, $199: the collet press with a micrometer depth stop, set to 0.01 mm.
- Base Plate 120 × 150 mm, $58.99: fits all three (13 mm column) and gives you holes to bolt a vise.

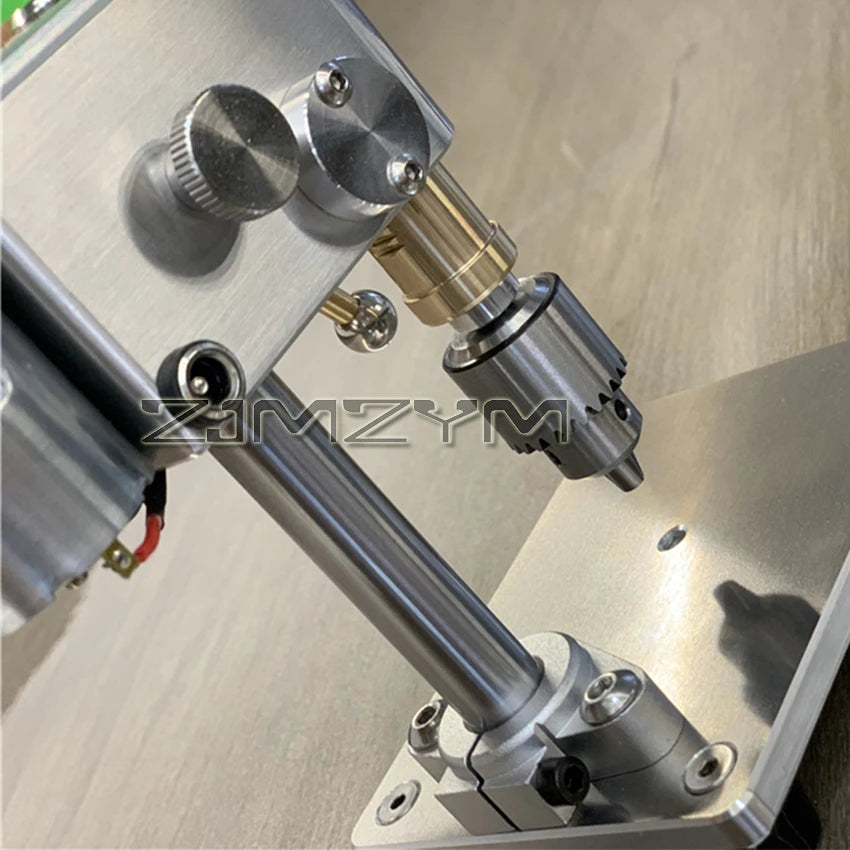

A real drill press for the holes a hand drill can't manage.
A 0.3 mm bit goes into a watch plate, a circuit board or a piece of model brass straight down, right on the mark. Belt drive, aluminum body, and small enough to live on the corner of your bench.
What it does
- Chuck takes bits from 0.3 to 4 mm
- Speed dial on the power adapter, 400 to 4500 rpm
- Head swings 360° and slides up and down the 13 mm column
- Wood, plastic and circuit board up to 4 mm; brass and aluminum up to 1 mm
- 30 W, 12 V; the adapter runs on any wall power from 100 to 240 V
- 100 × 80 × 180 mm. Factory model TZ-525
Pick your kit
- Bench Kit, $129 — the press, speed-control adapter, chuck key, 3 mm hex key and a spare belt.
- Bench Kit + 10 Cobalt Bits, $145 — everything in the Bench Kit plus a 10-piece cobalt drill set, 0.5 to 3 mm. Ready to drill the day it arrives.
- Watchmaker Kit, $209 — the Bench Kit plus a drill press vise, a 3.5 in clamp-on bench vise and a dial indicator with magnetic base.
- PCB Kit, $219 — the Watchmaker Kit plus a 10-piece cobalt drill set 0.5–3 mm and an automatic center punch.
To bolt the vise under the chuck, add the 120 × 150 mm base plate: it replaces the stock base and carries the mounting holes.
Ten minutes to set up
Arrives in three pieces: head, column, base. Slide the column in, drop the head on, tighten two screws. The key is in the box.
Can it mill?
It is built for drilling. Milling puts side load on the bit, and that needs an ER11 collet spindle in place of the chuck.
Pairs well with
- For circuit boards: PCB micro drill bits, 10 of one size, $12.99 and the 360° rotating PCB holder, $40.99
- For watch work: the drill press vise, $59 or the brass watch vise, $65.99, so the part is clamped instead of held by hand
Items from different listings ship separately, each with its own tracking number.
Covered
Free tracked shipping. In the US the press ships from a US warehouse and arrives in 3 to 7 business days (the drill bits and the Watchmaker and PCB Kit extras follow separately in 1 to 2 weeks). Australia and New Zealand: two to three weeks. 30-day returns. If any part breaks in the first 12 months, we post a new one free.
Shipping and returns
Free tracked shipping on every order to the United States, Australia, New Zealand and Canada, with no minimum. A few items ship to a shorter list of countries, and their page says so.
Orders leave within 2 business days. The delivery time for your country is shown under the price of each item. In the United States the Mini Drill Press, the lathes, the XYZ and XYZR micrometer stages and many of the tools ship from US warehouses and arrive in about a week or less. Items shipped from overseas take one to two weeks, a few larger ones two to four. You get a tracking number by email as soon as the parcel is scanned.
30-day returns from the day it arrives, unused and in its packaging. If it arrived damaged or faulty, we pay the return label. If you simply changed your mind, you pay the return postage and get the full price of the item back. Email support@arvonelle.com before sending anything back.
Before you order
Do I pay tax or duty? In the United States, sales tax is added at checkout where your state charges it, and the total you see is what you pay. For Australia and New Zealand nothing is added at checkout. If a carrier ever asks you for a fee on one of our parcels, don't pay it: email us first and we sort it out.
What if a part breaks? For twelve months, tell us which part and we post a new one free. No return needed.
Can I cancel? Yes, within 24 hours of ordering, no questions asked.
How do I reach you? Write to support@arvonelle.com or use the chat. A real person answers within one business day.
