Extended column for a mini drill press, 300 mm
Share
Couldn't load pickup availability
- Free shipping, US and Australia
- Secure payment
- 30-day returns
Description
The column on a mini drill press is short on purpose - it keeps the machine small. Then you put a vise on the table, or a stage under the vise, and the head is already near the top of its travel with nothing left to raise.
This is a longer one. 300 mm instead of the 165 mm ours came with, so there is another 135 mm of column to move the head up.
The material matters here

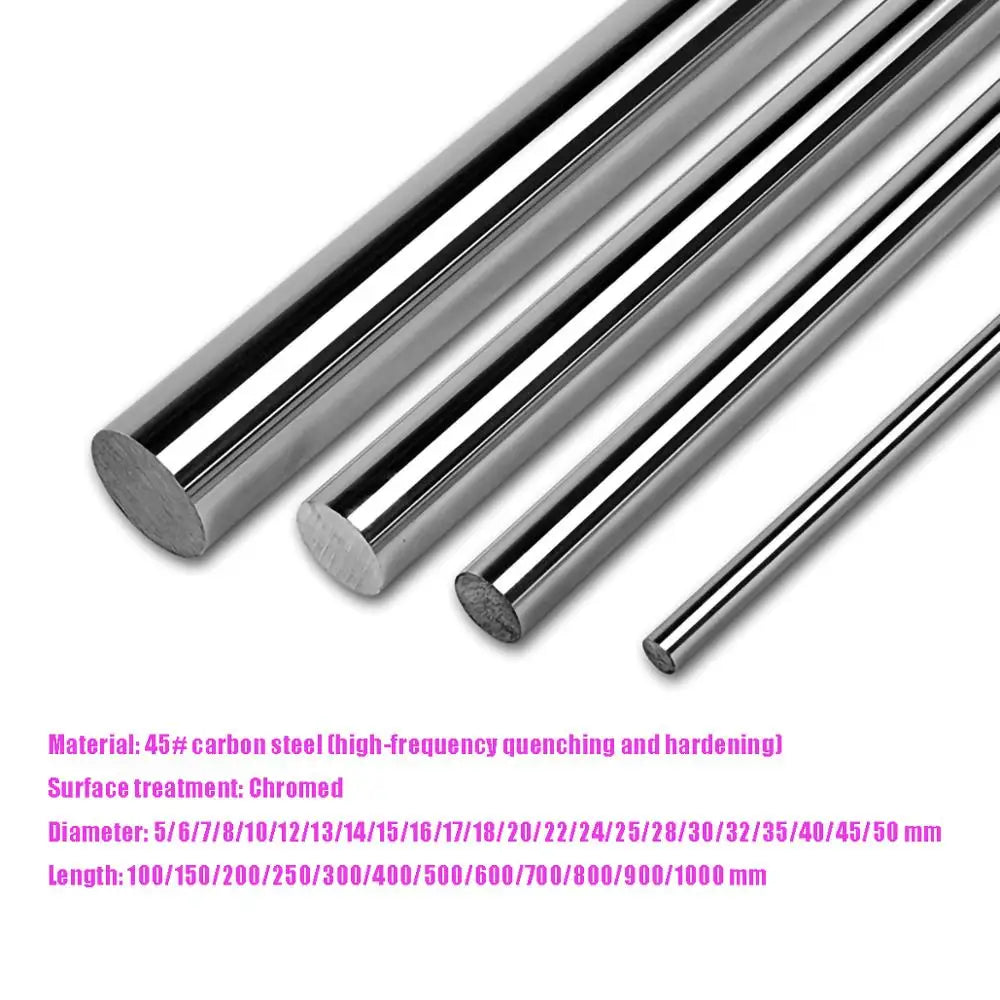

45 carbon steel, high-frequency quenched and hardened, then chrome plated. That is what a column is supposed to be. A plain stainless rod of the same diameter is cheaper and looks identical, but it is soft - the split clamps that hold the head will dent it, and a dented column no longer slides square. We looked at the stainless version and did not stock it.
Two sizes, and they are not interchangeable
Measure the bare column on your machine before ordering. Ours is 13 mm. The heavier machines in this class are 16 mm. Nothing adapts one to the other.
Fitting it
The column is not pressed in. It is held by a split clamp at the base and another in the head, so both come loose with a hex key and the old column slides out. Keep the old one - it is the right length when you want the machine compact again.
Honest limits
- We have not fitted one ourselves yet. We measured our own column at 13 mm across and 165 mm long, rule against the bare rod, and this is the matching diameter in a longer length. The fitting itself we will photograph once our sample is on the bench in early October.
- A longer column bends more. That is not a defect, it is how a cantilever works: the higher you set the head, the more a side load moves it. For drilling straight down it is fine. If you were already at the limit of what this machine holds still, more column will not help.
- How much extra room you actually gain under the chuck depends on where you clamp the head, not only on the length of the rod.
Shipping and returns
Shipping is free on every order, to the United States and to Australia, tracked, with no minimum. Orders are processed within 2 business days.
After that the number depends on what you bought, and the line under the price gives it. The drill press takes about 2 weeks because we do not hold stock of it, and bits, punches and small consumables take about 6 to 10 business days.
Australia is not slower. An earlier version of this page said three to four weeks, on the assumption that further away means longer. It is the opposite: the parcels leave China, and China is closer to Sydney than to Philadelphia. Our carrier quotes 6 to 10 days to Australia against 4 to 7 to the United States, and it costs us less to send. So the Australian figures here are the same as the American ones. What we cannot claim is that we have watched it happen - we have not shipped an Australian order yet, and the day we have real tracking from there these become our numbers instead of the carrier's.
On the plug, we have to correct ourselves. This page used to say our supplier sells an Australian-plug version of the adapter at the same price. That was wrong, and we are leaving the correction here rather than deleting the sentence. It came from a different machine in a different supplier's catalogue. The listing this machine actually comes from has no plug option at all. We asked the supplier straight out and they answered that they fit a compatible plug for the destination country - which is an answer, but it is theirs, not something we have checked. The plug block further up this page says what we will do if what arrives does not fit your wall.
You get a tracking number by email as soon as the parcel is scanned, not before. A link that sits at label created for a few days is normal on this route.
Returns: 30 days from delivery, unused and in its packaging. Nothing is excluded - there is no rule here about sale items. If it arrived damaged or does not hold tolerance, we pay the return label. If you simply changed your mind, the return postage is yours and the price of the item comes back in full. Email support@arvonelle.com before sending anything back.
Before you order
Will it plug into my outlet? Voltage, yes: the supply is rated 100 to 240 V, which covers both 120 V American mains and 230 V Australian mains, so no converter and no transformer. The plug is the part we cannot promise yet. The machine has no plug option we can select when we order it. We asked our supplier and they answered in writing that they fit a compatible plug for the destination country - we are quoting them, not claiming it, because we have not yet had one in our hands. Our sample is on order. If what arrives will not go into your wall, tell us: we post you the right adapter free, or refund you in full with the postage on us. An earlier version of this answer said the supplier sells a separate US-plug and Australian-plug version at the same price. That was wrong and came from a different machine; we are leaving the correction here instead of quietly deleting it.
Can it mill? As it ships, no. Milling needs an ER11 collet spindle in place of the drill chuck, because side load pulls a bit out of a chuck. That spindle is a real part and we are sourcing it. Until it is on the shelf we do not sell collets or end mills either.
Do your vises fit the press? The ones meant for drilling do - the drill press vise and the brass vise on its XY stage bolt to the base as it comes. The bench vises do not bolt down and must not go under a spinning bit. The engraving ball vise and the toolmaker's vise are bench tools too. Every page says which it is.
Do I pay tax or duty? In the United States, sales tax is added at checkout where your state charges it, and the total you see is the total. In Australia, consignments under AUD 1,000 normally carry 10% GST collected by sellers whose Australian turnover passes AUD 75,000 a year; we are well below that, so nothing is added at checkout and nothing should be asked of you on delivery. If a carrier ever asks you for a fee on a parcel from us, do not pay it - send us the notice first and we will sort it out with you. We are not going to claim we cover all duties everywhere. We cover what we control and we tell you about the rest.
What if a part breaks? For twelve months, tell us which part and we post a new one free. No return, no inspection, no photograph of the packaging. That applies in Australia too.
Can I cancel? Yes, within 24 hours, no questions. After that it is usually already moving.
Why trust a shop you have never heard of? You should not, on our say-so. Check instead that every page tells you what the tool will not do, that each product carries its own delivery number for your country, that we say which figures we measured and which we were told, and that when we get something wrong - the plug, which spindle fits, how long Australia takes - we say what the page used to say.

-
