Aluminium mini vise with V-groove jaws, 34, 39 or 59 mm

$39.00 USD
$39.00 USD
Sale Sold out
Shipping calculated at checkout.
Size: 34 mm jaws
One to two weeks, tracked. Shipping is free.
30-day returns
  • Free tracked shipping
  • Secure payment
  • 30-day returns

Description

A small, light, square-sided vise that bolts down flat: onto a stage, a base plate, or the bench.

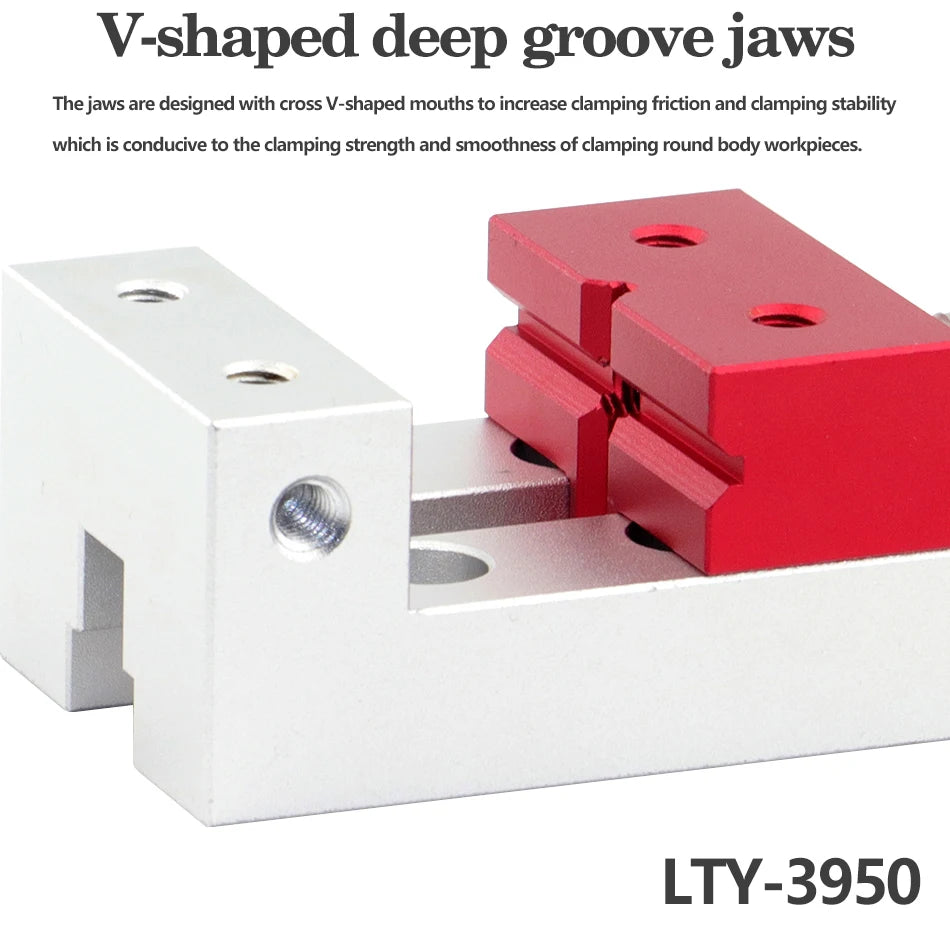

Machined aluminium body, a steel lead screw with a knurled knob, and jaws with a V-groove cut across them, so a pin, a drill blank or a round shaft sits centred instead of rolling. Flat parts sit on the jaw faces as usual. Counterbored holes in the body take the screws that hold it down, and it comes with its own M5 screws and T-nuts.

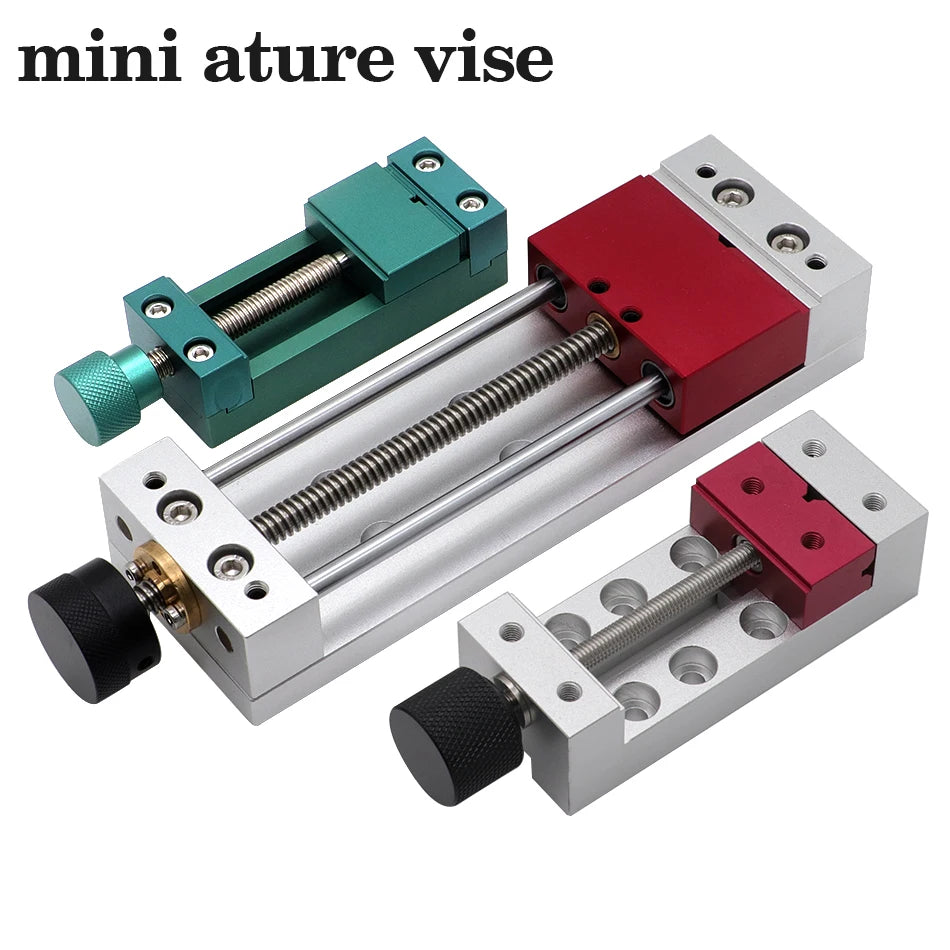

Three sizes

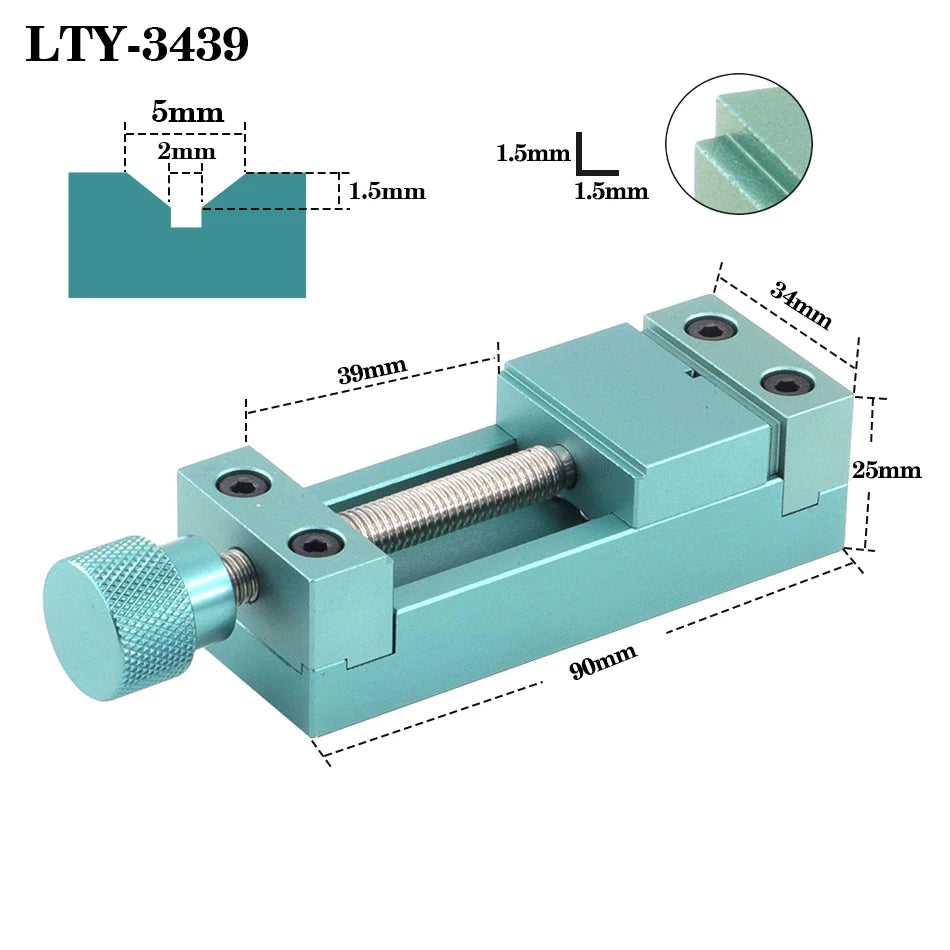

  • 34 mm jaws (teal): opens to 39 mm, body 90 mm long, 25 mm tall. The one for a 40 or 60 mm stage.

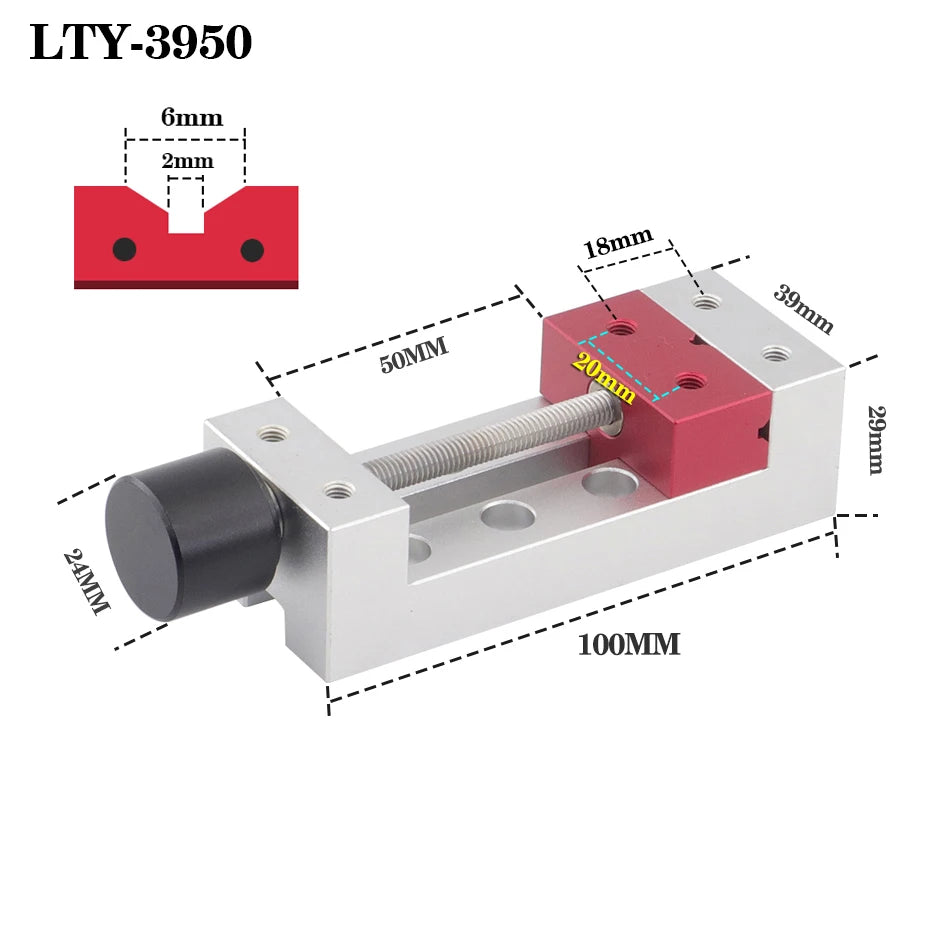

  • 39 mm jaws (red): opens to 50 mm, body 100 mm long, 29 mm tall.

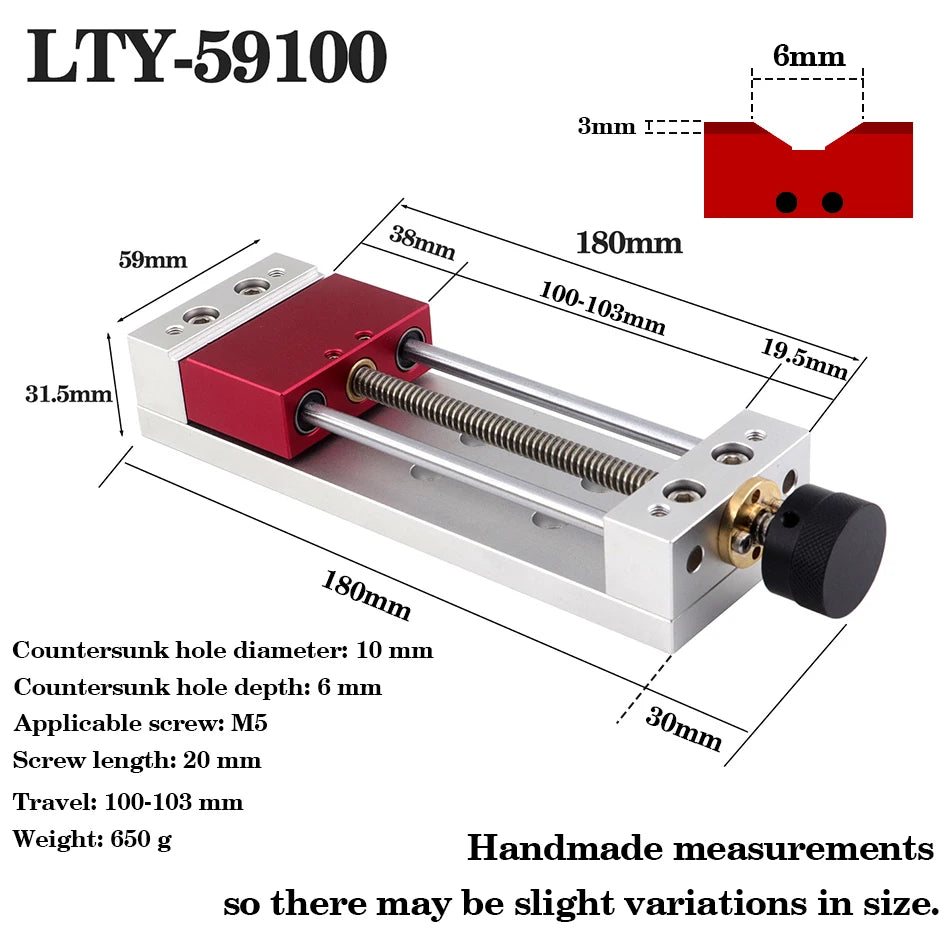

  • 59 mm jaws (red): opens to 100 mm, body 180 mm long, about 650 g. For a base plate or the bench.

Dimensions are the maker's drawing.

Where it fits in

This is the top layer of a small setup: machine, then a stage for position, then this to hold the part square under the bit.

Delivery

Free and tracked, to the United States, Australia, New Zealand and Canada alike. One to two weeks. The order is picked and posted by the supplier after you place it, which is why we give a range and not a date.

30-day returns from the day it arrives. Return postage is yours, the price of the item comes back in full.

Free tracked shipping on every order to the United States, Australia, New Zealand and Canada, with no minimum. A few items ship to a shorter list of countries, and their page says so.

Orders leave within 2 business days. The delivery time for your country is shown under the price of each item: most arrive in one to two weeks, the larger machines in two to three. You get a tracking number by email as soon as the parcel is scanned.

30-day returns from the day it arrives, unused and in its packaging. If it arrived damaged or faulty, we pay the return label. If you simply changed your mind, you pay the return postage and get the full price of the item back. Email support@arvonelle.com before sending anything back.

Will it plug into my outlet? The power supply runs on 100 to 240 V, so it works on American, Canadian, Australian and New Zealand mains without a converter. If the plug that arrives doesn't fit your outlet, tell us and we post you the right adapter free, or refund you in full.

Can it mill? It is built for drilling. Milling puts side load on the bit, and that needs an ER11 collet spindle in place of the chuck.

Can I bolt a vise or an XY stage to it? On the $129 press, add the 120 x 150 mm base plate: it replaces the original base and has tapped holes for fixing. The $149 collet press already has slots in its base. Clamp-on bench vises are for the bench, not for use under the drill.

Do I pay tax or duty? In the United States, sales tax is added at checkout where your state charges it, and the total you see is what you pay. For Australia and New Zealand nothing is added at checkout. If a carrier ever asks you for a fee on one of our parcels, don't pay it: email us first and we sort it out.

What if a part breaks? For twelve months, tell us which part and we post a new one free. No return needed.

Can I cancel? Yes, within 24 hours of ordering, no questions asked.

How do I reach you? Write to support@arvonelle.com or use the chat. A real person answers within one business day.
